Regular price $4,180.00 USD
Regular price Sale price $4,180.00 USD
Sale Sold out
Shipping calculated at checkout.

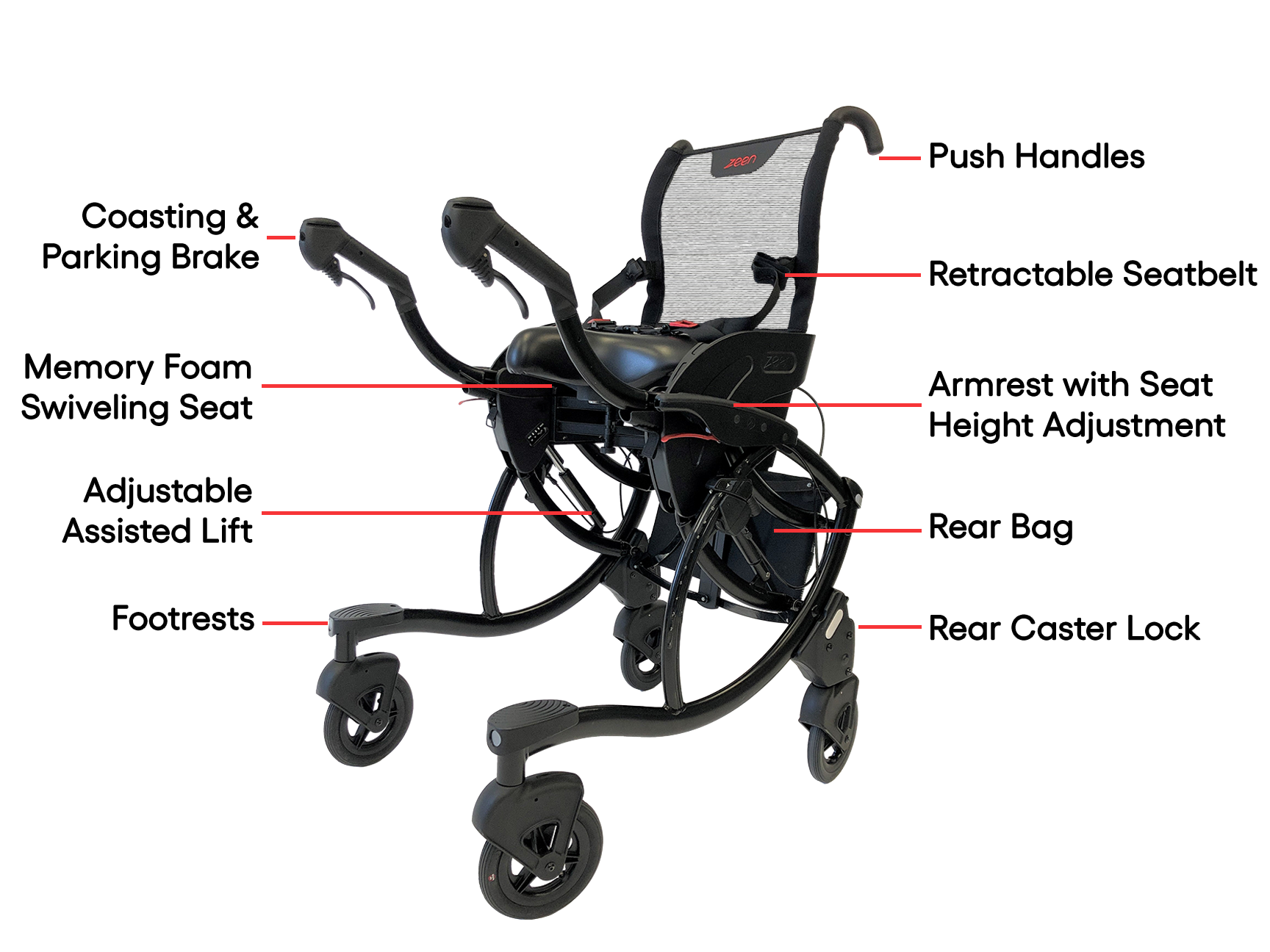

The Zeen is an innovative mobility device filling the gap between a walker and a wheelchair. Providing a power- free lift between sitting and standing, you can enjoy effortless walking with the safety and reassurance of support through your hips and buttocks at all times. The Zeen is for the person who values independent mobility in a standing position and is experiencing trouble with strength, balance, endurance or fear of falling.

The standard production unit requires strength and dexterity in both hands. If you are limited to use of a single hand, we have a one handed control unit option for you.

Video

Product Manual

Check out the Zeen Accessories



Measurements / Specifications:

Zeen Standard Gas Springs (rated for 100-250lbs user weight)
Zeen Light Gas Springs (rated for 50-175lbs user weight)

Seated Mode Dimensions: L: 33.5” (85 cm) x W: 25.2” (64 cm) x H: 36.8” (94 cm)
Maximum Standing Height Dimensions: 33.5” (85 cm) x W: 25.2” (64 cm) x H: 51.3” (130 cm)

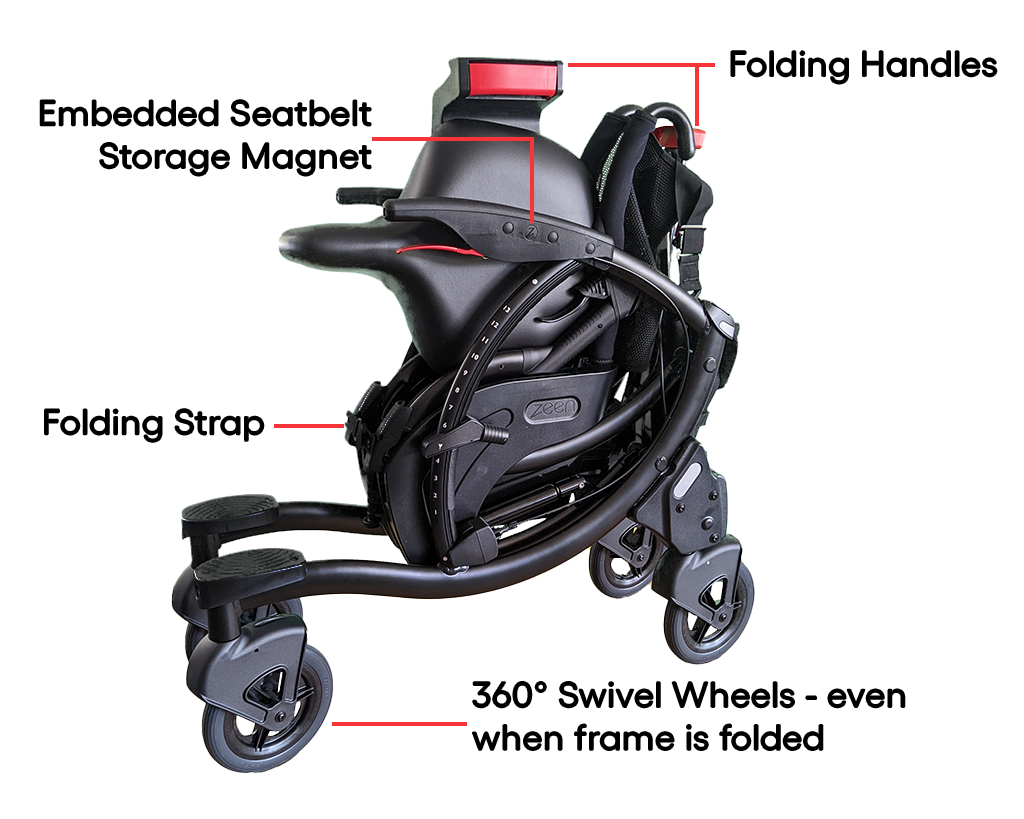

Folded Dimensions: L: 33.5” (85 cm) x W: 11.0” (28 cm) x D: 38 (97 cm)
Handlebar Height from seat top surface: Vertical distance: 6” (consistent for all users)
Minimum Turning Diameter: 45 in (114 cm)
Footrest Height from Ground: 13 in
Lowest Seated Height from Ground: 20.5 in
Highest Seat Height from Ground: 35 in
Width between foot plates: 19 in
Width Between Armrests at Seated Position: 21 in
Height of Backrest from Seating Surface: 15 in
Wheel Diameter: 8 inches (200 mm)
Wheel Width: 1.25 inches (31mm)
Brake Lever to Grip Distance (at center of grip): 75mm or approximately 3”
Maximum Force to Apply Brake: 40 N (~9 lbs.)
Total Weight: 42-45 lbs.

5 Lift Adjustment Settings: “Standard Production” Gas Springs
o Lift Setting 1: 100 lbs. (45 kg) – 130 lbs. (59 kg)
o Lift Setting 2: 130 lbs. (59 kg) – 160 lbs. (73 kg)
o Lift Setting 3: 160 lbs. (73 kg) – 190 lbs. (86 kg)
o Lift Setting 4: 190 lbs. (86 kg) – 220 lbs. (100 kg)
o Lift Setting 5: 220 lbs. (100 kg) – 250 lbs. (113 kg)

5 Lift Adjustment Settings: “Light Gas Spring”
o Lift Setting 1: 50 lbs. (23 kg) – 75 lbs. (34 kg)
o Lift Setting 2: 75 lbs. (34 kg) – 100 lbs. (45 kg)
o Lift Setting 3: 100 lbs. (45 kg) – 125 lbs. (57 kg)
o Lift Setting 4: 125 lbs. (57 kg) – 150 lbs. (68 kg)
o Lift Setting 5: 150 lbs. (68 kg) – 175 lbs. (79 kg)
