FreeWheel Wheelchair Attachment Folding Chair Adaptor-Motion Composites

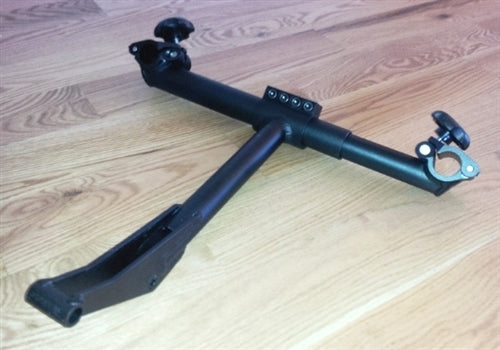

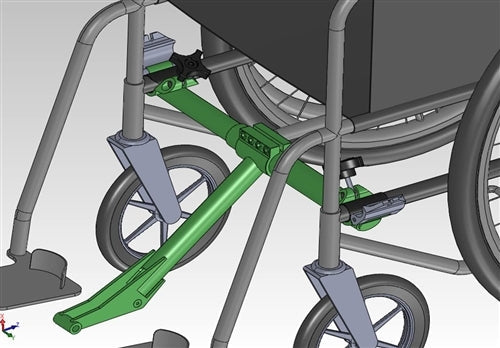

Folding Chair Adaptor-Motion Composites:
Need 2.5" of horizontal side tubing to attach Folding Wheelchair Adaptor. May be angled, as long as the sides are parallel.
Clamp ends which attach to the frame are 1.25" in diameter to fit the Motion Composites Model folding chair Helio C2 and Helio A7
Note: The motion composites folding chair adapter doesn't fit the oval shape of the folding chair on Model Veloce.
Width between horizontal mounting tubing 13" to 19"
Side Horizontal mounting tubing height: 2 footrests 6" to 16". Single footrest 10" to 16" (Must come out on top of single footrest)
FreeWheel clamps on to "HITCH"
Easily remove Adaptor by unscrewing knobs on side tubing
Maximum footplate height off ground can only be 4" on single footrest
Adaptor Weighs 3.5 lbs max personal body weight for the adaptor is 250lbs.
Note: Note: ALWAYS use the shortened FLAT SHIM that comes with the ADAPTOR, not the flat shims from the FreeWheel box.
