Living Spinal

StandNWalk 步态训练器

StandNWalk 步态训练器

常规价格 $8,500.00 USD
常规价格 促销价 $8,500.00 USD
促销 售罄
结账时计算的运费

The StandNWalk is committed to offering the most advanced intelligent walking rehabilitation robots for users with walking issues, assisting them in standing and walking again, and restoring a life of freedom and happiness. The optimal application device for the BWSTT reduction in weight walking training therapy technique, which improves and enhances lower limb walking abilities. No need for assistance from others; simply push and hold the lift button to stand up unaided using the robot's thrust.

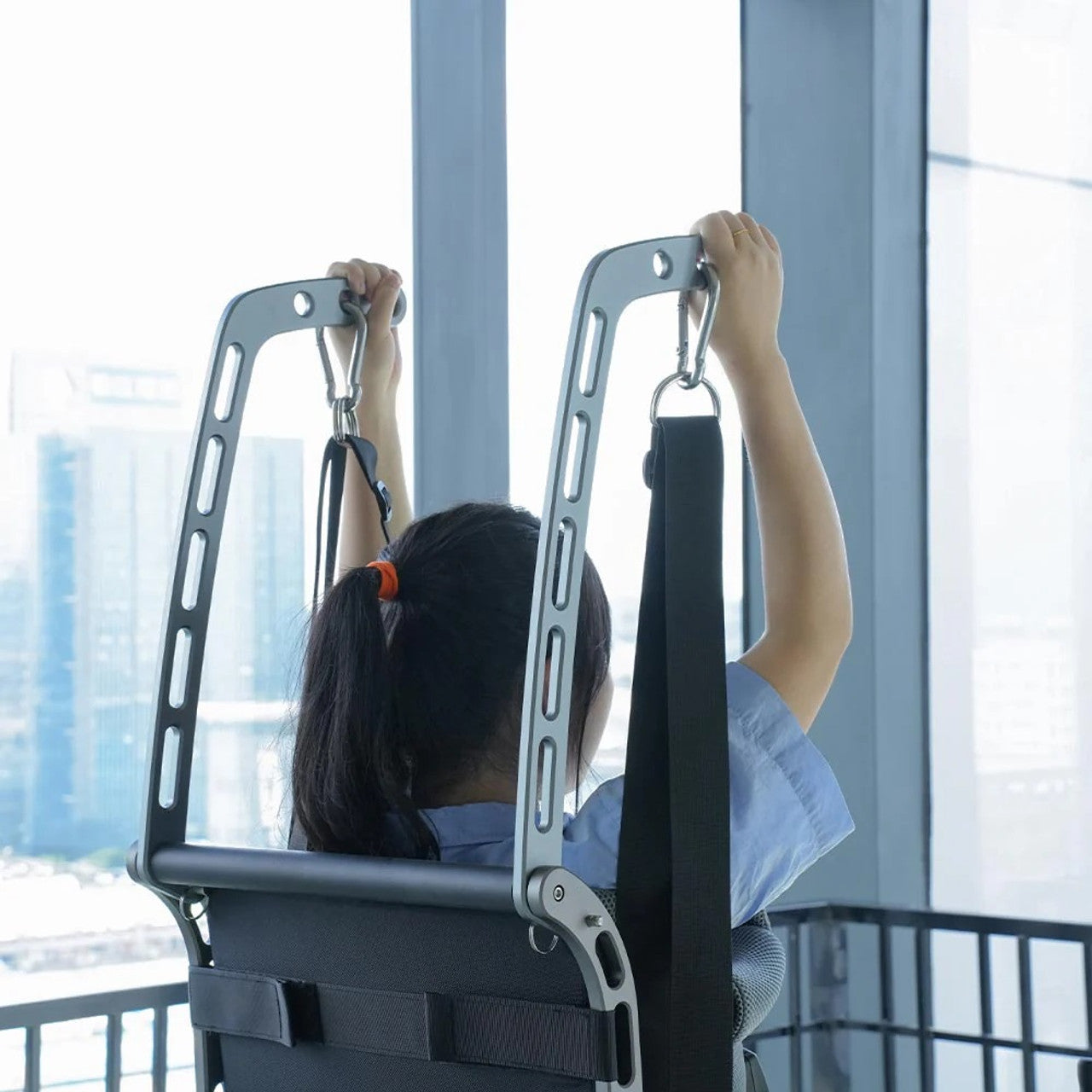

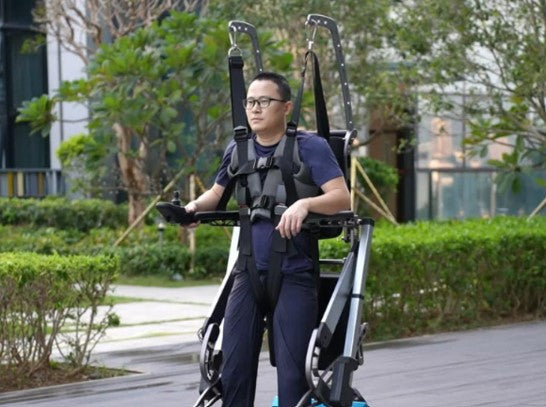

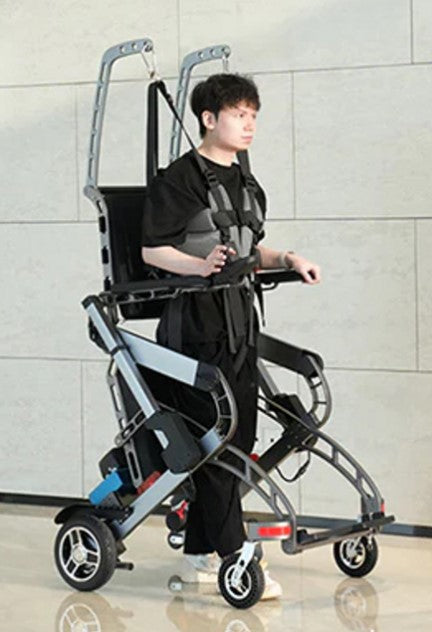

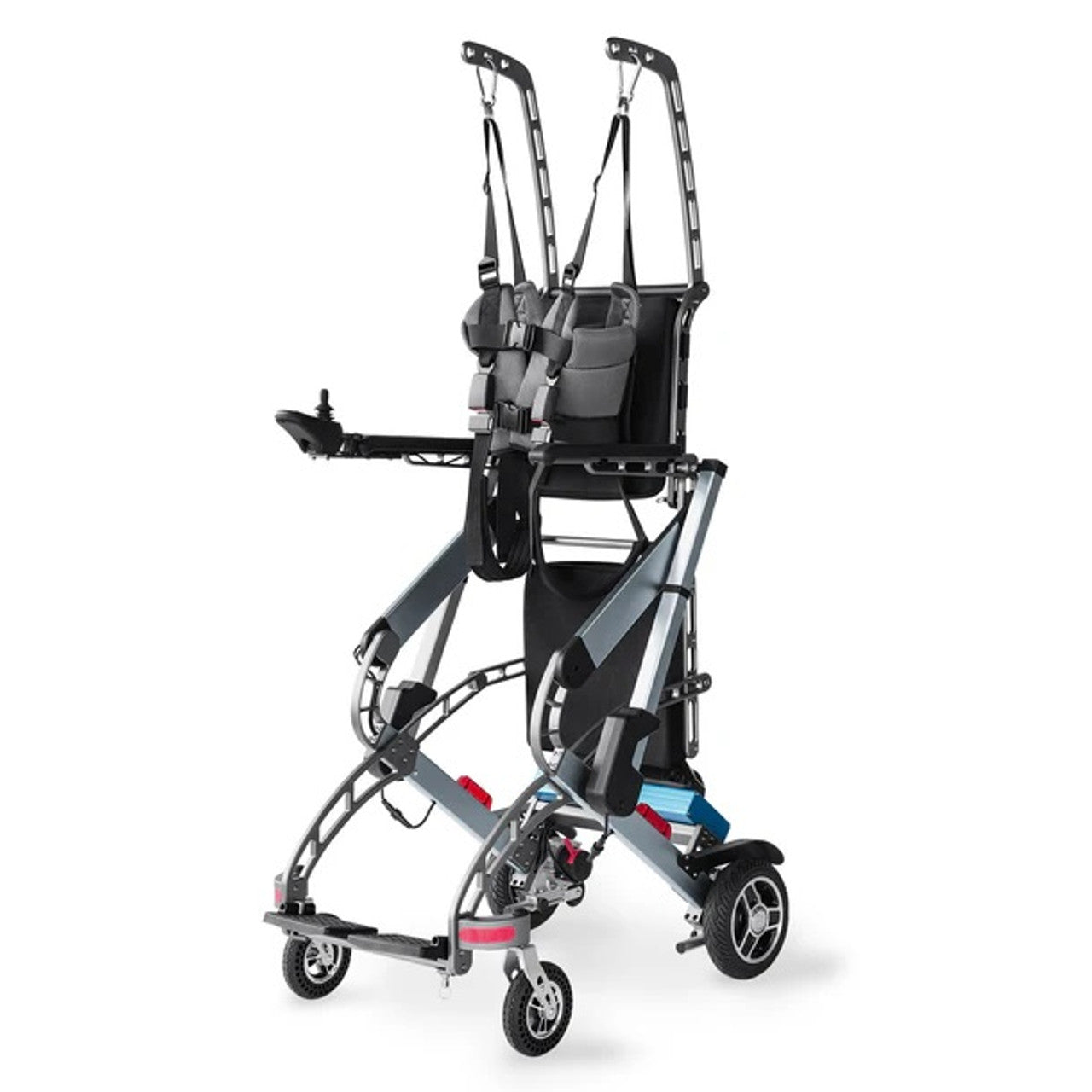

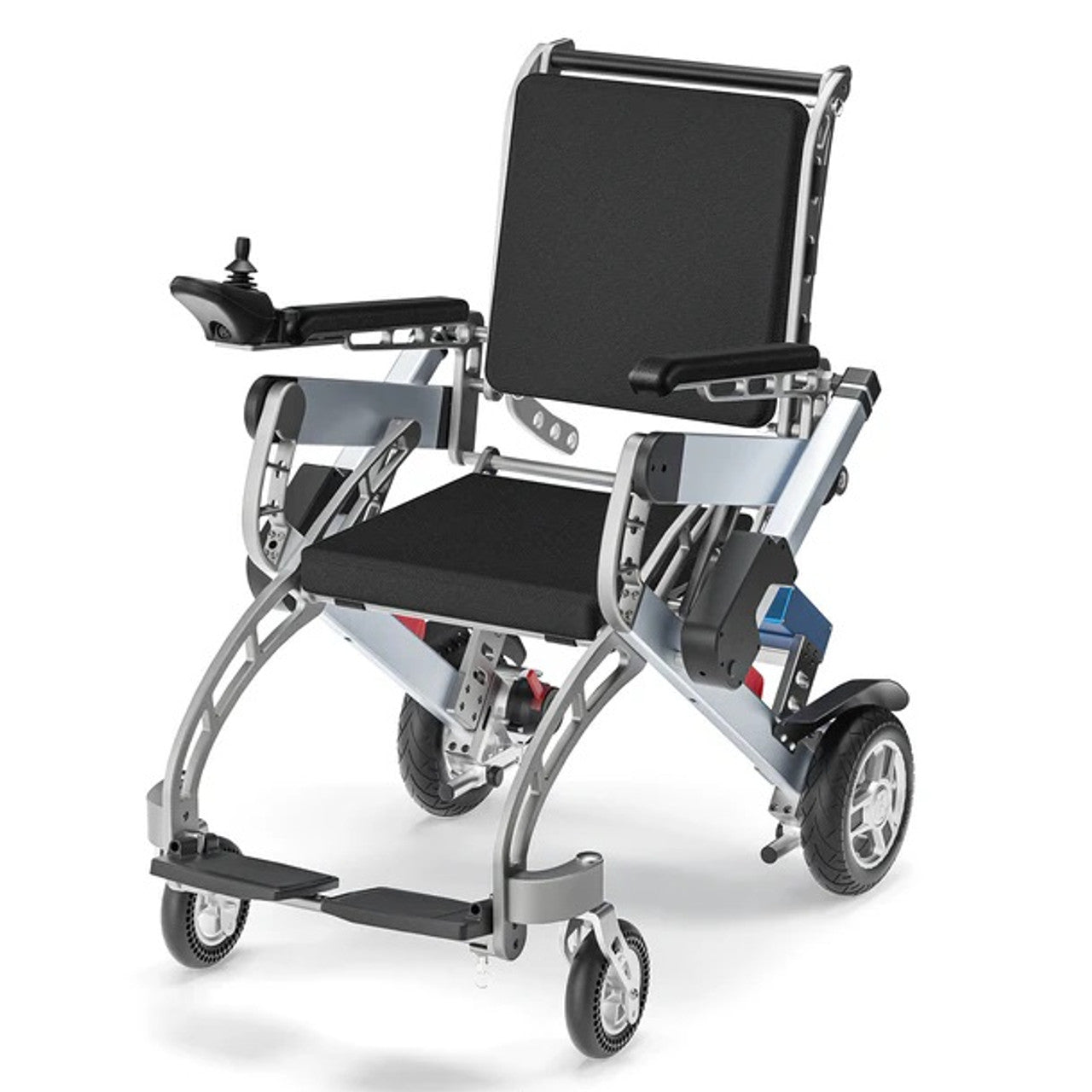

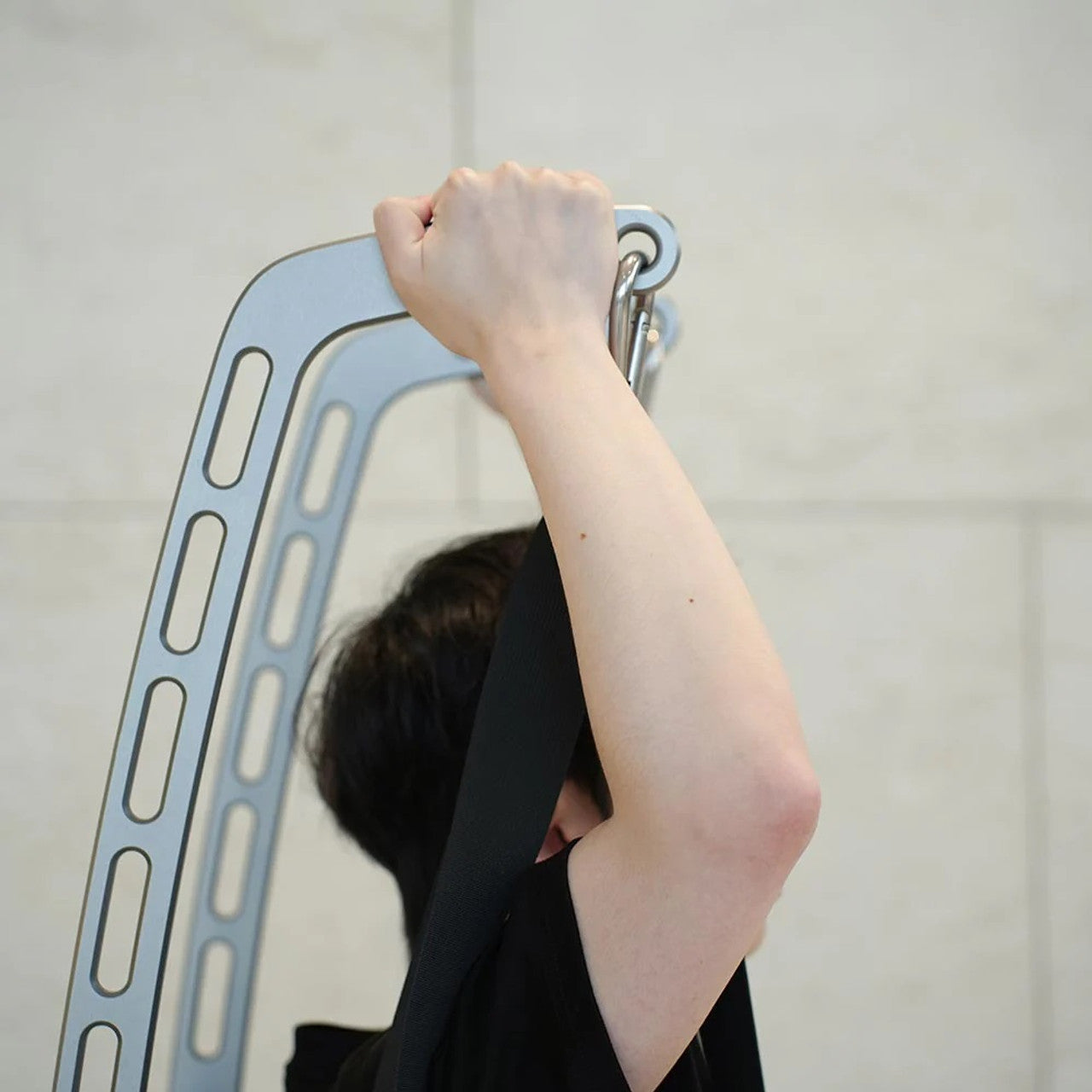

The two aluminum alloy suspension brackets above the head, together with the safety waist belt and leg straps, efficiently reduce the load on the body. The evenly distributed upward suspension straps and arm-level side handles allow for secure walking while maintaining balance in the body's vertical and lateral movements. Switch the robot to wheelchair mode, which has 5 gears of speed, a 20-kilometer range, and the ability to drive freely.

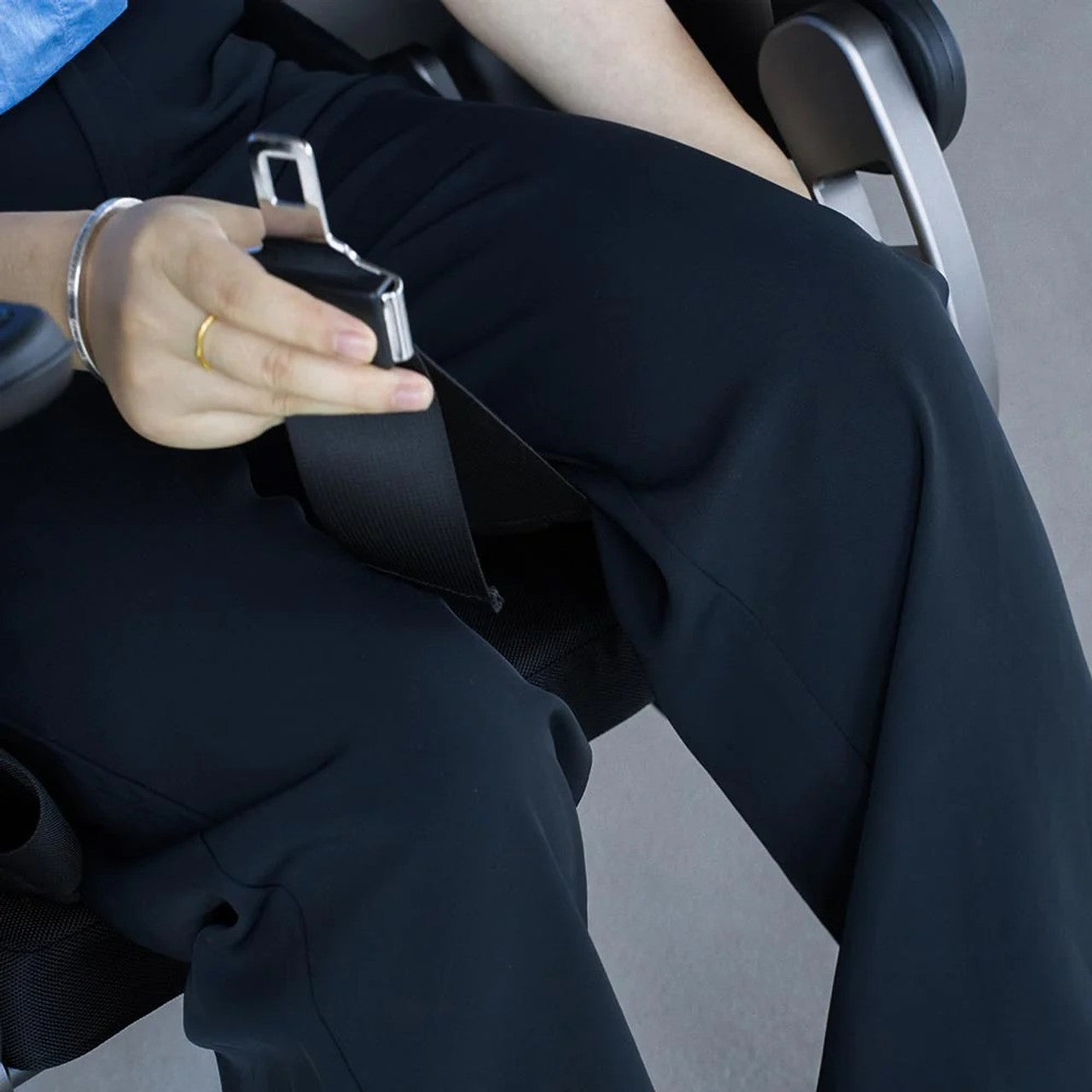

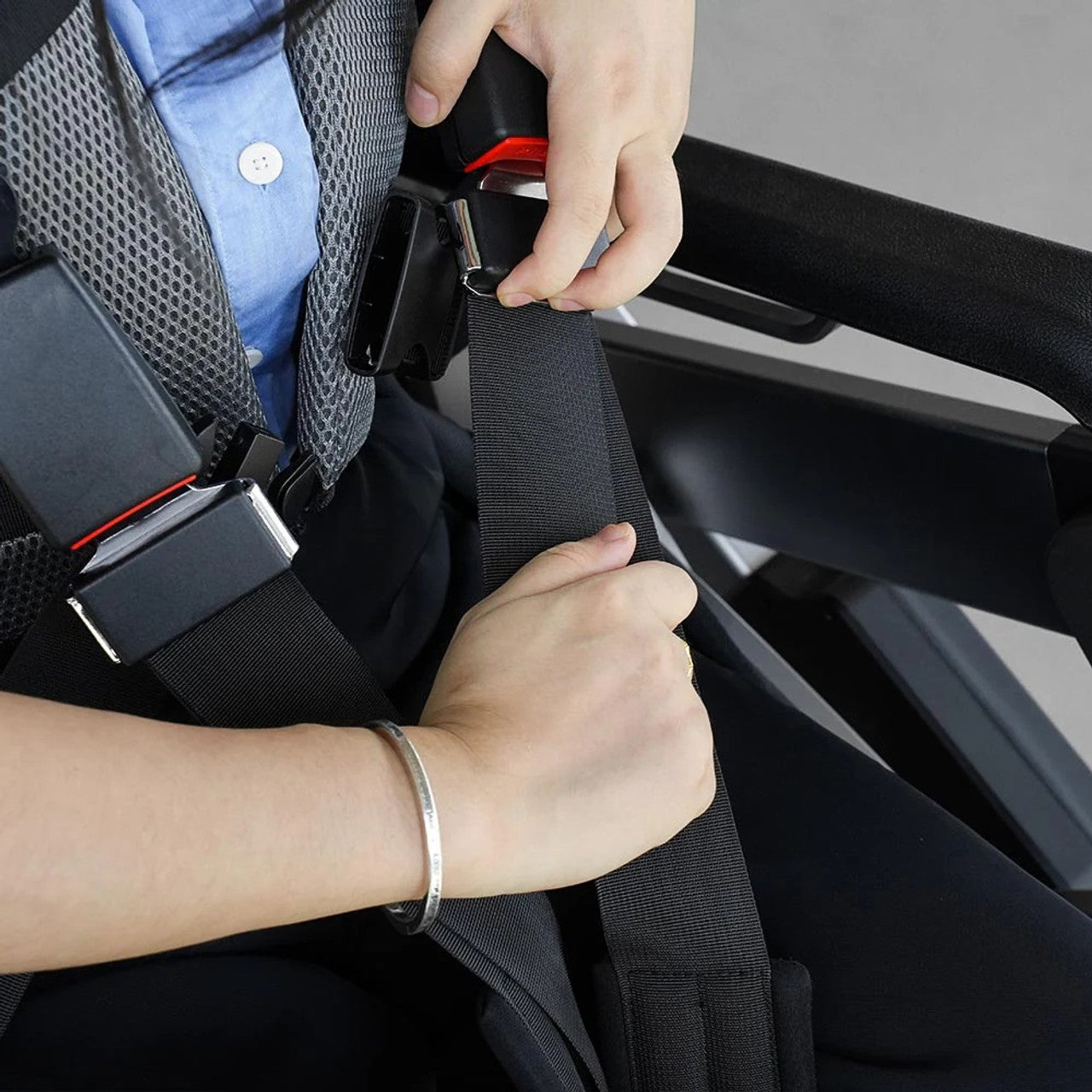

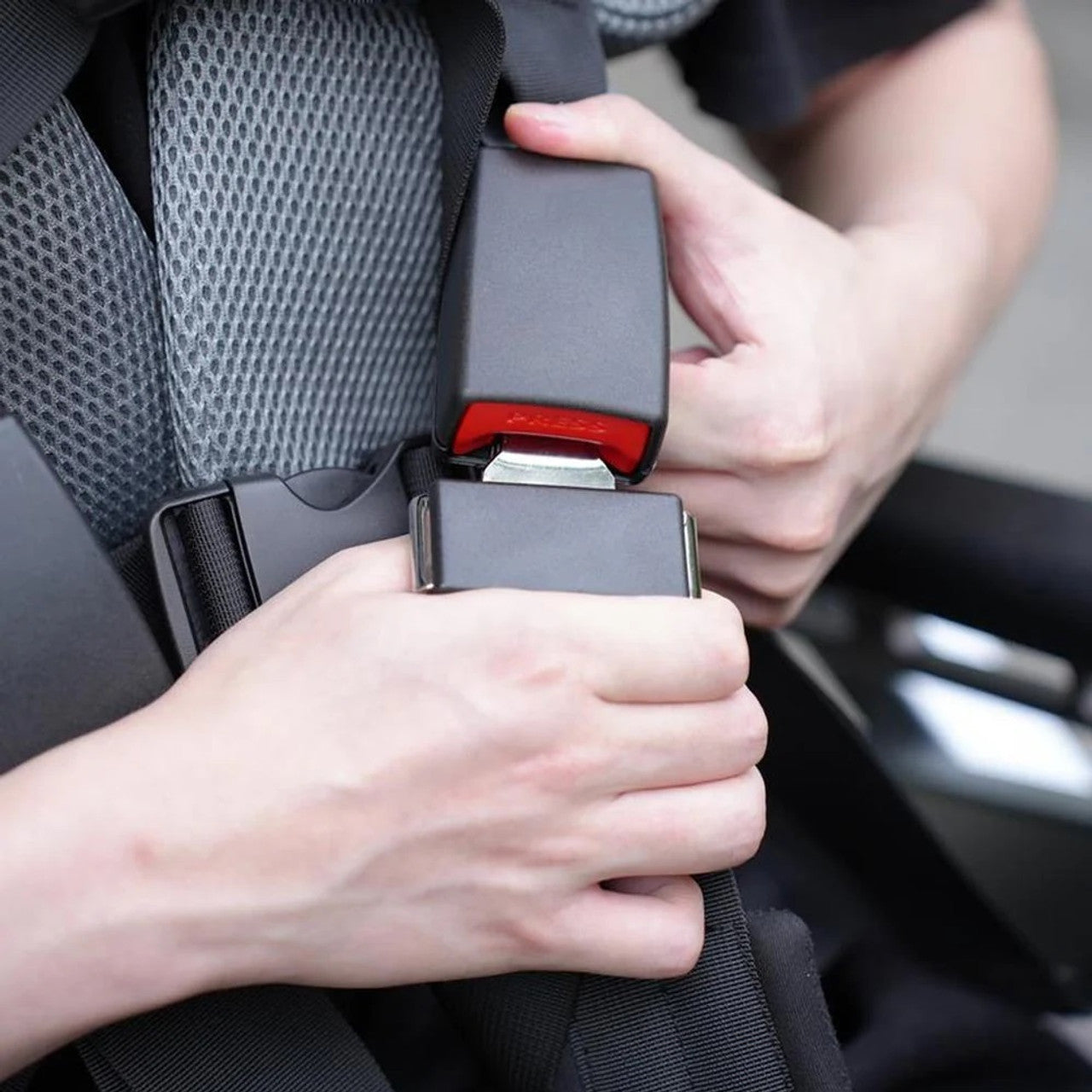

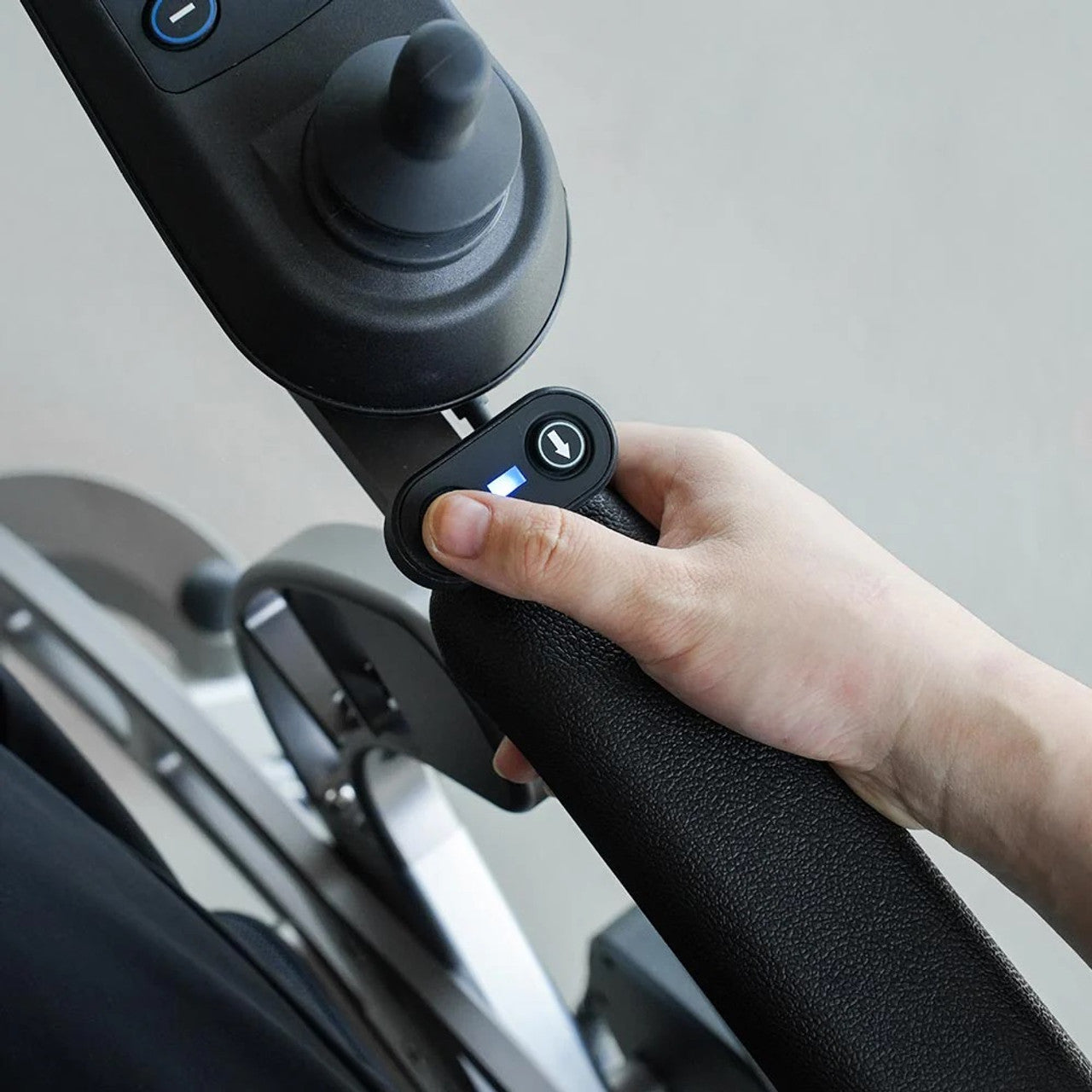

Instructions for use: Lower the robot to a chair position, step in, and sit down before fastening the waist and leg straps. Hold down the lift button, and the robot will aid your body in gradually moving from a seated position to a standing position. The robot will give you upward strength, lower the weight on your body, keep you balanced, and help you walk steadily to exercise your leg muscles and nerves till you recover.



Manual

Video

Brochure

Specs

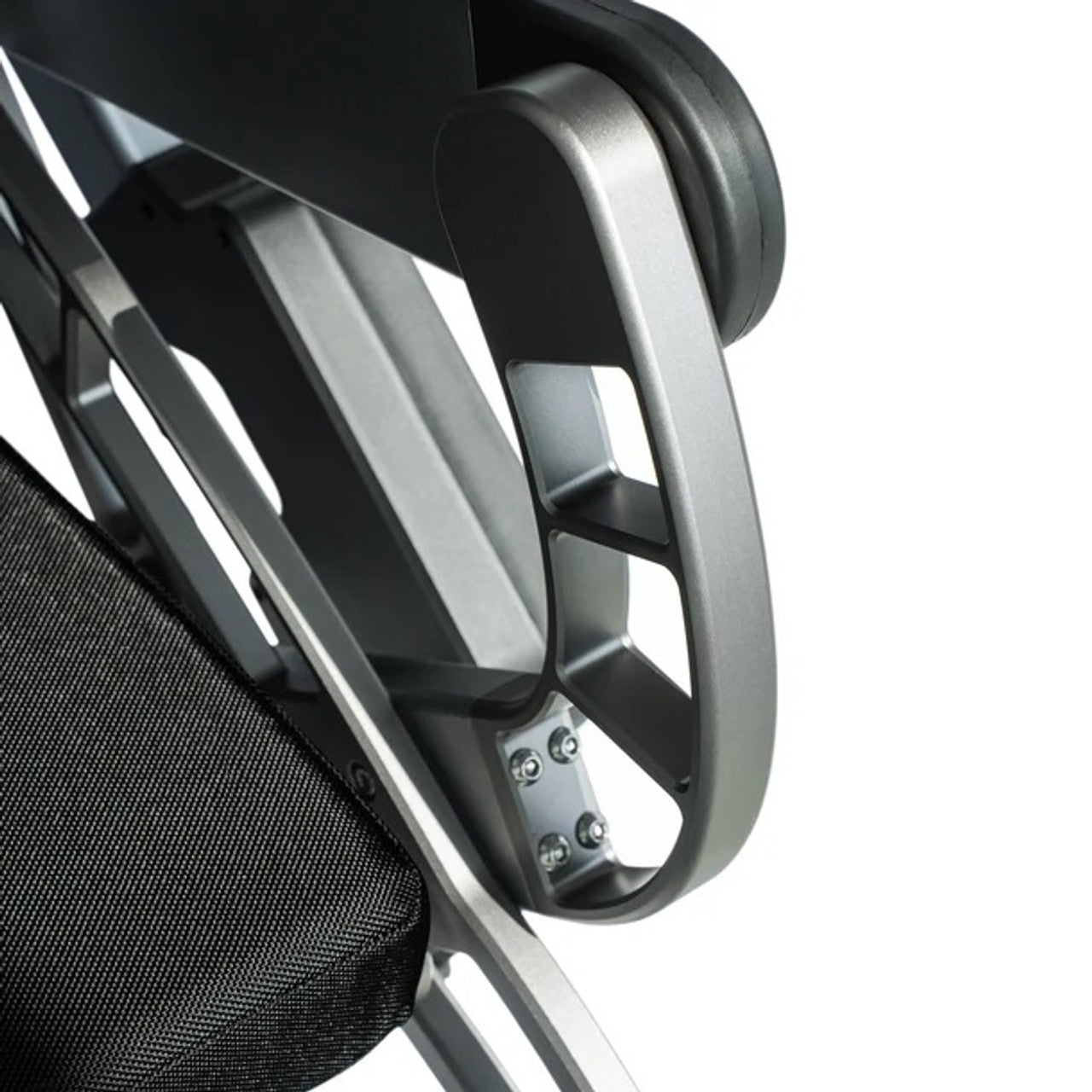

Aeronautical aluminum alloy material, one-piece CNC cutting, no welding, strong and stable, non-shaking, non-tipping, maximum load of 120 kilograms.
A lifting drive motor paired with a lifting controller, with a single-side push of 1000 Newtons and a total force of 2000 Newtons for both sides, can lift a weight of 120 kilograms steadily.

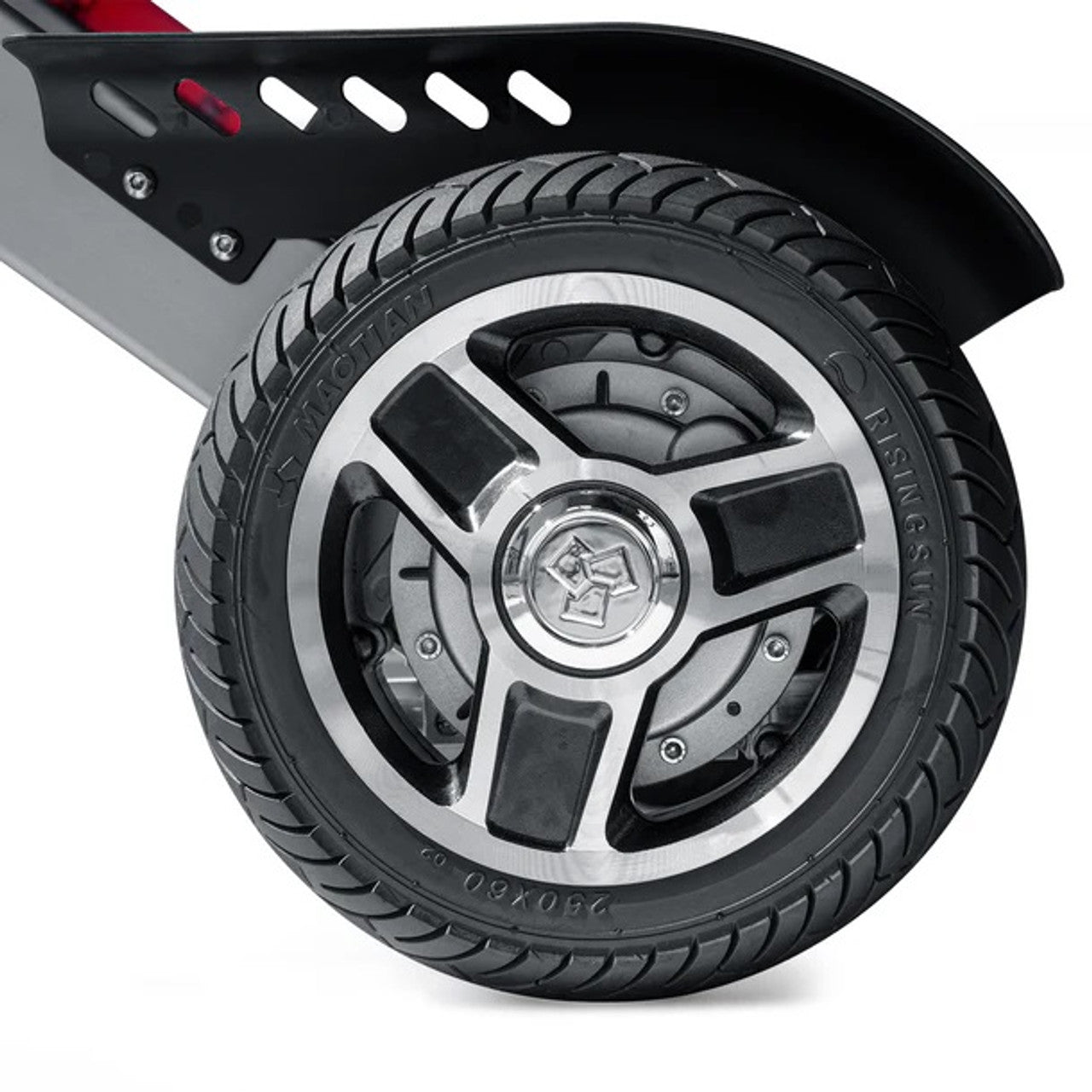

High-quality 10-inch rear wheel brushless motor with driving controller, high power, powerful driving force, capable of climbing a 10-degree slope while seated, and active electromagnetic brakes.

Electricity Mileage More than 20km after a single charge
Speed per hour ≤6 km/h
Maximum Speed ≤6 km/h
Battery Rated Capacity 15.4Ah; Rated Voltage 24V
Motor Rated Voltage 24Ah; Rated Power 250Wx2
Charger Power 220V, 50Hz;Output Voltage 24V; Output Current 2A
Minimum Radius of Gyration ≤1200 mm
Gradeability ≤8"
Braking Performance Horizontal Road Braking ≤15m; Maximum safe slope braking ≤3.6m (6°)
Standing Capacity 9"
Static Stability ≥9"
Dynamic Stability ≥6"
Obstacle Clearance Height ≥40mm (The obstacle crossing surface is inclined and the obtuse angle is ≥140")
Crossing-Ditch Width 100 mm
Temperature -25°C~50°C
Tire Size Front Wheel 7 Inches, Rear wheel 10 Inches
Seat Material Oxford Cloth
Carrying Capacity ≤100kg
Lifting Drive Thrust Force ≤100kg
Weight Net Weight 47kg; Gross weight 61kg

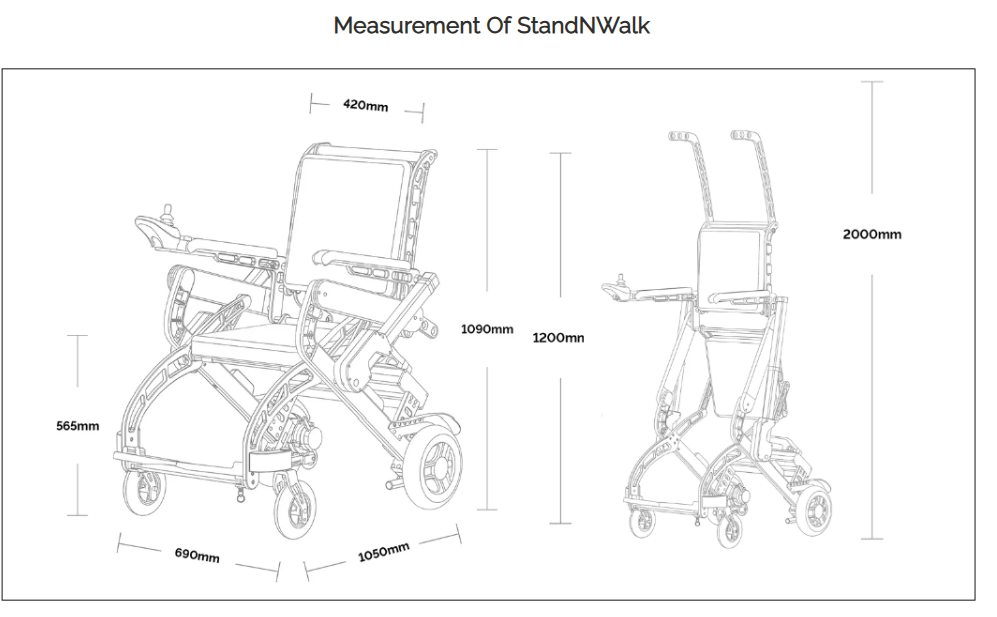

Seat Height 565mm
Sitting Configuration Height 1090mm
Sitting Configuration Depth 1050mm
Total Width 690mm
Seat Width 420mm
Standing Configuration Total Height 2000mm
